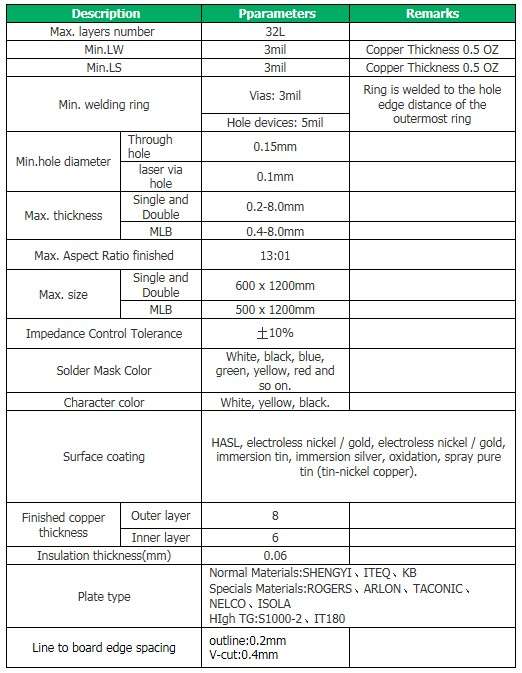

1. Pcb capability

2. Quality control

(1) Quality management system and product through the authority the authentication
(2) Before making by engineering design prevention and control
(3) Strict production process control
(4) The perfect product quality improved system
(5) 100% inspection including electric testing and AOI inspection
(6) For high pressure testing, impedance test, micro slice, solderability test, thermal shock
     test, reliability test, insulation resistance testing, ion pollution test, etc
(7) UL product authentication
(8) Product executive IPC standards
(9) The system through the ISO9001 certification

3. Tolerance

Items Tolerance
Board thickness ±0.05mm (board thickness 0.2mm to 0.4mm)
±0.1mm (board thickness <1.0mm)
±10%(board thickness >1.0mm)
Plate hole size 0.08mm(min:0.05)
Non-plated hole size 0.05mm(min:+0/-0.05mm or +0.05/-0mm)
Outline dimension 0.15mm(Routing), 0.1mm (Punching)
Impedance control ±5% or ±10%
